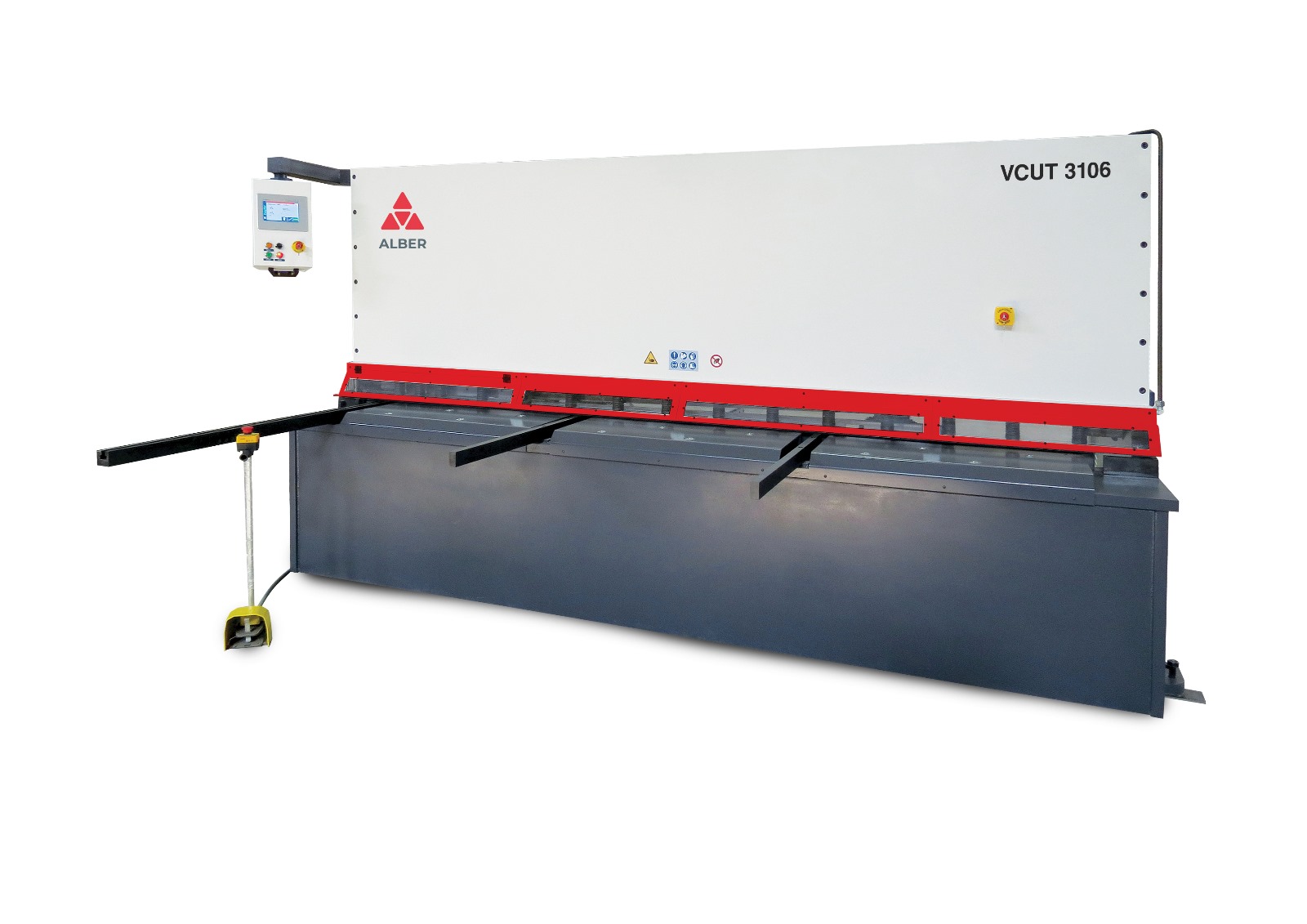

Mükemmel kesim için dayanıklı ve güçlü çerçeve tasarımı
Sertleştirilmiş ve taşlanmış bıçaklar
CE standartlarında güvenlik ve ışık korumaları.
Bıçak boşluğu ve kesme açısı CNC kontrolör tarafından otomatik olarak ayarlanır.
Arka tarafta sac kaydırıcılar.
Daha büyük saclar için otomatik yukarı açılır arka dayama
Kolay kesme ve malzeme besleme için ön destek kolları T-Yuvaları
Bilyalı Transfer masası
Standard Equipments
CE-Norm with safety switches and light guards at the back side Welded strong steel construction frame User friendly CNC Touchscreen control unit Automatically adjusted rake angle by CNC Adjusted cutting length by CNC Iron ball integrated front tables Ball screw back gauge, 1000mm Flip-up finger guards 1500mm Squaring arm with scale T-Slot Support arms (L=1000mm) Led light for cutting area& Shadow line Automatically pressure adjusted solid holddowns Sheet slider at the back side Top and bottom blades with four sides
Optional Equipments
Laser Cutting Line Light curtains for finger protection Pneumatic sheet support system Pneumatic sheet support with return to sender Anti twist system Back gauge 1250 mm Hydraulic swing-up back gauge Oil coolant Oil heater Central lubrication manual or motorized Adjustable angle stop 0-180°
Pneumatic thin sheet support system
1 meter flip up front fences with flexi-glass Iron ball transfer tables Hydraulic hold down pistons
Cybelec CybTouch 8
Easy Operating • High-contrast touchscreen, with vivid colors • Simple pages, large keys, clear display with all the information the operator needs • Intuitive and user-friendly interface • Complete programming of parts in seconds • Quick set up of the machine with the EasyCut page. • Contextual help and warning pop-up Better Cutting • Automatic calculations of the shear functions upon material specifications • Automatic blade gap • Automatic cutting angle • Automatic cutting length • Automatic back gauge correction • Automatic back gauge foldaway • Anti-twist management • 2/3-position sheet support • Return to sender function (RTS) • Front or back gauge management • Parking position (foldaway function) • Hold-downs pressure management • System pressure management • Sheet position offset, allowing to cut in the middle Powerful • Large cutting sequences and programs can be memorized • Easy communicationvia wireless connection to a laptop computer • Over 10 languages available Customer Benefits Very simple to use with intuitive touch screen programming Higher quality and productivity increase Powerful features for maximum output
