İki silindirli hidrolik çalışma - Assistmach
Yüksek performanslı hidrolik dişli pompa - Rexroth
Tüm bileşenlerden önce yerleştirilmiş yüksek basınç filtresi (tıkanma dedektörü ve bypass ile)
Rezervuardaki hava temizleme filtresi
Yerçekimi ile hızlı iniş, bükülme aşaması ve koçun geri dönüşü oransal akış valfleri ile elektronik olarak kontrol edilir - Rexroth
Oransal basınç valfleri ile kontrol edilen bükme kuvveti - Rexroth
Yüksek viskozite indeksine sahip kaliteli yağ
Çerçeve Analyze programı kullanılarak tasarlanmış ve boyutlandırılmıştır
Dünyanın önde gelen şirketlerinden hidrolik bileşenler - Rexroth
Din yönetmeliklerine göre konektörler ve sistem borusu boyutlandırması
Sae yönetmeliklerine göre flanşlı konektörler ve hortumlar
Silindirlerin yüksek kaliteli malzemelerle imalatı, sertleştirme ve kayma yüzeyleri için çok hassas finisaj
Conta seçimi ve muhafazaların boyutlandırılması uzun yıllara dayanan deneyimin bir sonucudur
Önleyici sistem yıkama ve kapsamlı testler
Sadece yüksek gerilme mukavemeti ve sertliğe sahip kaynaklı çelik kullanıyoruz
Standard Equipments

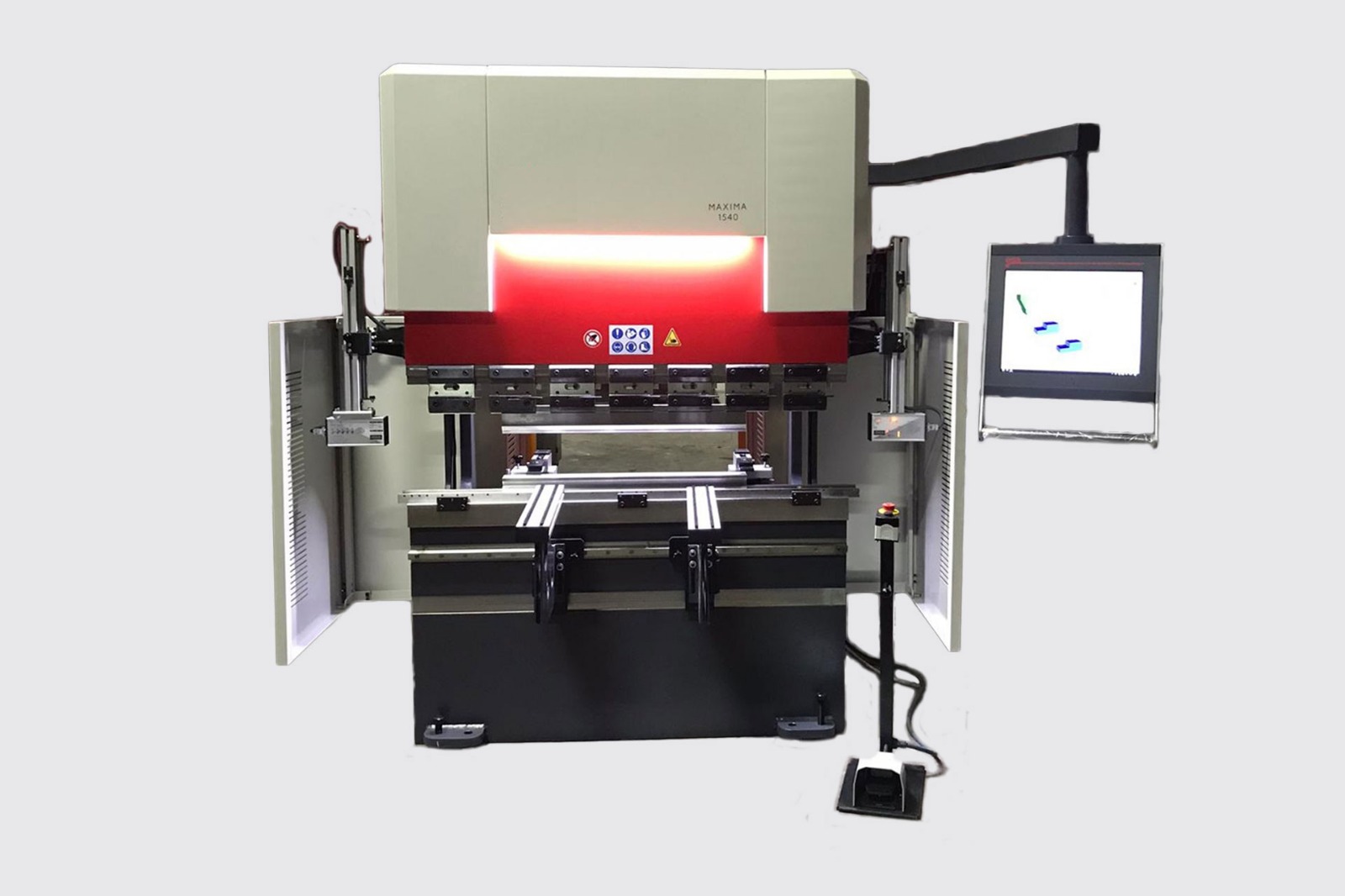

(Y1, Y2, X) 3 axis Synchro Press Brake Manual Crowning Control Unit - CNC Cybelec Cytbtouch 12 Graphic Control CE Norm with DSP Top beam safety with PLC included European Quick Release Clamping system 60mm Die Holder Back gauge : Motorised & Ballscrew system Back gauge fingers - manual height adjustable Back gauge motors: AC motors Sliding Front Arms with full length linear guide and brushes Safety covers
Optional Equipments
Cybelec Modeva PAC control Unit Cybelec Modeva 19T control Unit Delem 587 Control Unit Delem 66T control Unit R axis CNC Controlled motorized crowning system Oil coolant Oil Heater Additional Front arms Addtional back gauge fingers Control Panel on opposite side
Top and Bottom Clamping system Quick release clamping
Europian Type Bottom Tool (4V Die)
Front support arms with brushes are mounted on a linear guide rail system
Manual Crowning system - Standard
CNC controlled motorized crowning system - Option
CE Safety system
Our machines are designed in accordance with Ce-Norms to ensure your safety with hydraulic, electric, appropriate height covers and laser light curtains.CE safety in tandem machines are also provided with light barriers
Precise and Robust Back Gauge systemz
Standard manual height adjustable fingers Fast and high accuracy Resistance to crash Maintenance free
Cybelec Cybtouch 12
Open to any operator thanks to the simple and intuitive full touch screen programming Modern and efficient hand drawing part profile programming Very fast solution provided by 2D graphic display and automatic bending sequence
Cybelec Cybtouch 12
Large touchscreen with a customizable area Comfort and power with a flat and modern design Direct import from most CAD/CAM systems Quality oil with high viscosity index
DELEM 58 T
The DA-58T is a state of the art complete 2D graphical control solution for synchronized press brakes. Offering easiest CNC programming based on the Delem graphical touch screen user interface including automatic bend sequence calculation and collision detection. Its 15" high resolution colour TFT, with industrial grade multi touch screen technology, gives access to the proven Delem user-interface. It enables direct navigation between product programming and actual production. Functions are directly located where needed, offering optimised ergonomics throughout the entire application. 2D graphical touch screen programming 15" high resolution colour TFT Bend sequence calculation Crowning control Servo and frequency inverter control Advanced Y-axis control algorithms for closed-loop as well as open-loop valves. USB, peripheral interfacing Profile-T offline software
